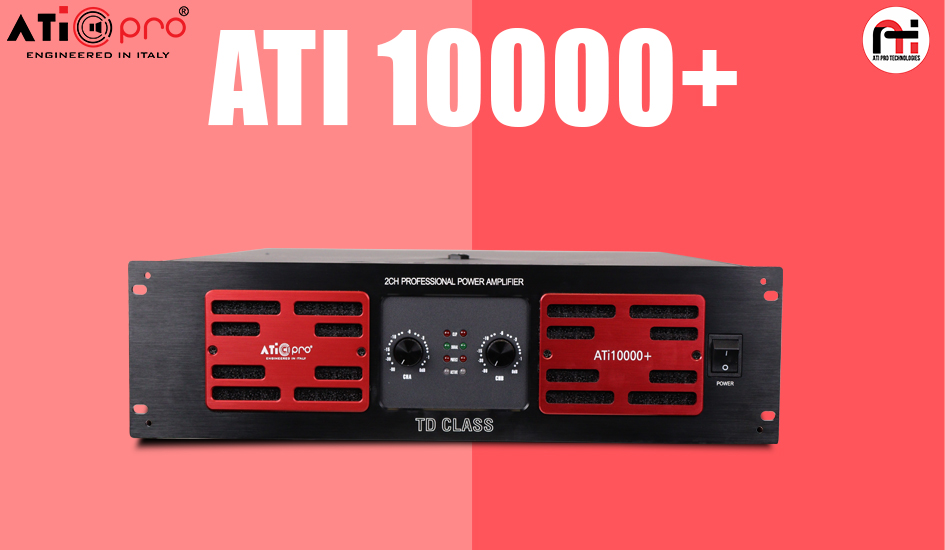

Regarding delivering unparalleled audio performance, the ATI 10000+ amplifier stands out in professional sound systems. This powerhouse amplifier is a must-have for any serious audio setup and is designed to meet the demands of high-power applications. Let’s delve into the specifications and features that make the ATI 10000+ a top choice for audio professionals.
Exceptional Power Output
The ATI 10000+ amplifier boasts impressive power ratings that ensure your sound system delivers crystal-clear audio at any volume. Here’s a breakdown of its power capabilities:
- 8 Ω Stereo Power: 2×2500 W
- 4 Ω Stereo Power: 2×4500 W
- 2 Ω Stereo Power: 2×5000 W
- 8 Ω Bridge Mono Power: 8000 W
- 4 Ω Bridge Mono Power: 10000 W
With these power levels, the ATI 10000+ is capable of driving large speaker arrays, making it ideal for concerts, large venues, and professional audio installations.
Pristine Sound Quality
The frequency response of the ATI 10000+ amplifier is meticulously crafted to provide high-fidelity audio reproduction. It offers a frequency response of 20 Hz – 20 kHz with a variation of only +/-0.1 dB, ensuring that every nuance of the audio signal is faithfully reproduced. The Total Harmonic Distortion (THD) is kept below 0.08% at 1 kHz and 1/4 output, guaranteeing clean and distortion-free sound.
High Performance and Reliability
One of the standout features of the ATI 10000+ is its robust design, ensuring reliable performance even under the most demanding conditions. The slew rate of >10 SV/Us contributes to its ability to handle rapid transients, providing crisp and accurate sound. With a signal-to-noise ratio exceeding 110 dB, this amplifier ensures minimal background noise, delivering a pure and immersive listening experience.
Superior Damping Factor
The damping factor of an amplifier is crucial for controlling speaker motion, especially at low frequencies. The ATI 10000+ boasts a damping factor of >2000 at 8 Ω and 1 kHz, allowing for precise control over the speakers and resulting in tighter, more accurate bass response.
Versatile Connectivity
Connectivity is key in any professional audio setup, and the ATI 10000+ does not disappoint. Each channel is equipped with 3-pin XLR input connectors that are electronically balanced, ensuring optimal signal integrity. Additionally, the amplifier features XLR, 3-pin male link connectors for easy daisy-chaining of multiple units. The output sockets are SpeakOn connectors (NEUTRIK), providing secure and reliable connections to your speakers.
Advanced Protection Features
The ATI 10000+ amplifier is designed with comprehensive protection features to safeguard your investment. It includes protection against short circuits, open circuits, overheating, overload, DC faults, and supersonic frequencies. These advanced protection mechanisms ensure that the amplifier remains reliable and functional even in adverse conditions.
Technical Specifications at a Glance
- Model Name: ATI 10000+
- Output Circuit: Class TD
- Input Impedance: 20 KΩ balanced, 10 KΩ unbalanced
- Power Requirement: 200-240V, 50-60 Hz
- Transportation Dimension: 69.5 x 54 x 24.5 cm
- Net Weight: 46 kg
- Gross Weight: 50 kg
Conclusion
The ATI 10000+ amplifier is a testament to advanced engineering and superior sound quality. Its impressive power output, pristine audio reproduction, and robust design make it an essential component for any professional audio setup. Whether you’re outfitting a large concert hall, a nightclub, or any venue requiring high-power amplification, the ATI 10000+ is your go-to solution for reliable and exceptional sound performance.
Upgrade your audio system with the ATI 10000+ amplifier and experience the power and clarity that only ATI can deliver.
