When it comes to DJ equipment, power and reliability are key. The ATI 12+ DJ Amplifier delivers both in spades, making it a top choice for professional DJs who must ensure their sound is clear and impactful. Let’s dive into the impressive features and specifications of this powerhouse amplifier.
Model Overview

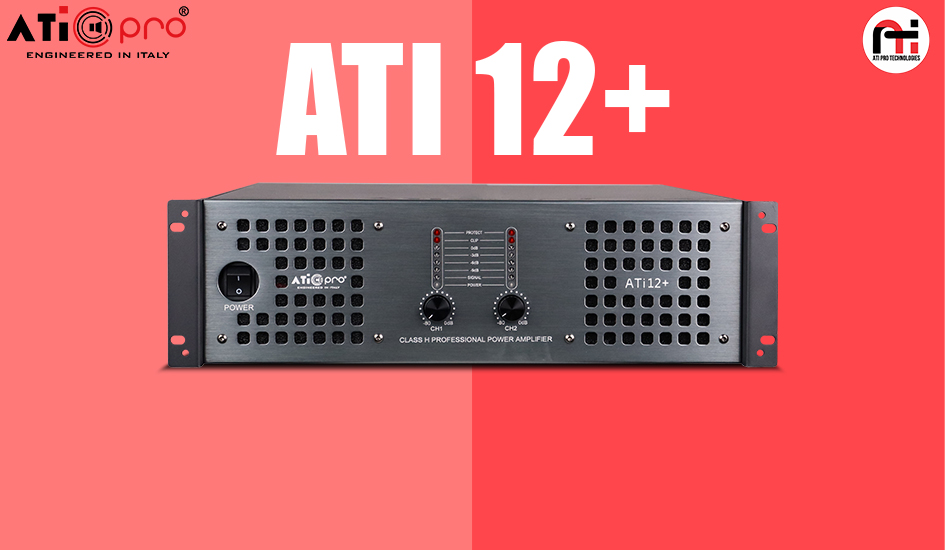

The ATI 12+ is a high-performance DJ amplifier capable of delivering a staggering 2550 watts of power. Designed with versatility in mind, it offers multiple configurations to suit a variety of setups and sound requirements. Whether you need stereo power for a balanced audio experience or bridge mono power for an even more potent output, the ATI 12+ has you covered.
Power Specifications
- 8Ω Stereo Power: 2x900W
- 4Ω Stereo Power: 2x1275W
- 2Ω Stereo Power: 2x1700W
- 8Ω Bridge Mono Power: 2550W
- 4Ω Bridge Mono Power: 3400W
These specifications ensure that no matter the impedance of your speakers, the ATI 12+ can provide the necessary power to drive them effectively.
Superior Sound Quality
One of the standout features of the ATI 12+ is its commitment to delivering high-quality sound. With a signal-to-noise ratio of over 80dB, this amplifier ensures that your music comes through loud and clear, with minimal background noise. The Total Harmonic Distortion plus Noise (THD+N) is less than 0.05% at 1kHz and 8Ω, meaning your sound remains clean and true to the source even at high volumes.
Robust Design and Protection
Reliability is crucial in any piece of DJ equipment, and the ATI 12+ is built to withstand the rigors of professional use. It features an array of protection mechanisms, including safeguards against short circuits, open circuits, overheating, overloads, DC, and supersonic frequencies. This ensures that the amplifier not only performs well but also has a long operational life, even in challenging environments.
Connectivity and Compatibility
The ATI 12+ is designed with flexibility in mind. Each channel comes with electronically balanced 3-pin XLR input connectors and link connectors, allowing for easy integration with a variety of audio sources and setups. The output connectors are of the NEUTRIK variety and are known for their reliability and durability.
- Input Sensitivity: 0.775v/1.0v/1.4v
- Input Impedance: 20kΩ balanced / 10kΩ unbalanced
- Frequency Response: 20Hz-20kHz ±0.5dB
- Damping Factor: ＞1500 at 8Ω, 1kHz
- Slew Rate: ＞20V/μs
These technical specifications contribute to the amplifier’s ability to deliver precise, high-fidelity sound across a wide frequency range.
Physical Specifications
For those concerned with portability and installation, the ATI 12+ is designed to fit into standard 3U rack mounts. Its transport dimensions are 67.5 x 57 x 22.5 cm, weighing 35kg (net weight) and 37kg (gross weight). While it’s a heavyweight in terms of performance, its form factor makes it manageable for professional setups.
Conclusion
The ATI 12+ DJ amplifier is a remarkable piece of equipment that offers immense power, exceptional sound quality, and robust protection features. Whether you’re a professional DJ or an audiophile looking for top-tier performance, this amplifier delivers on all fronts. Its versatile connectivity options and reliable design make it a worthy investment for anyone serious about their sound.
