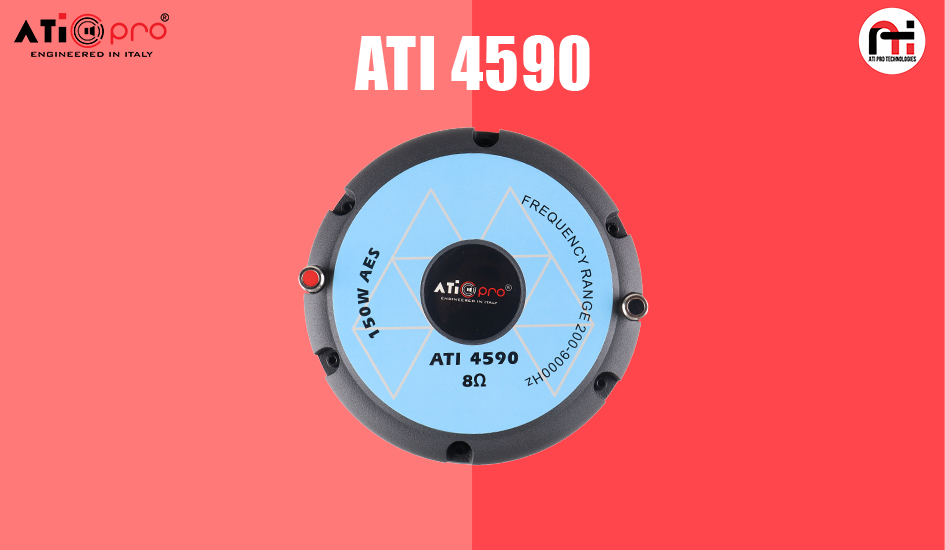

When it comes to professional audio equipment, precision and performance are paramount. Enter the ATI 4590 Mid HF Driver—a remarkable component that elevates sound quality in various applications, from concert venues to theatrical performances. Let’s delve into the specifications and benefits of this exceptional mid-high frequency driver.
Key Specifications
The ATI 4590 boasts a 2-inch throat and a nominal impedance of 8 Ohms, making it compatible with a wide range of audio systems. It features a robust middle-range power handling capability of 150 Watts (AES) and a high range of 80 Watts (AES), ensuring that it can deliver exceptional sound clarity and volume even in large spaces.
One of the standout features of the ATI 4590 is its impressive sensitivity rating of 118 ± 2 dB, allowing it to reproduce audio with remarkable efficiency. The frequency response ranges from 300 Hz to 20 kHz, with a maximum response of 300 Hz to 9 kHz at -10 dB. This broad frequency range enables the driver to reproduce everything from deep, resonant lows to crisp, soaring highs with ease.
Design and Materials
The voice coil diameter of 3.5 inches contributes to the driver’s ability to handle high power levels, while the use of CCAW (copper-clad aluminum Wire) for the voice coil material ensures lightweight performance without compromising on durability. The Kapton former material enhances thermal stability, making the ATI 4590 reliable for extended use.
The diaphragm material is crafted from high-quality polyester, providing excellent responsiveness and clarity in sound reproduction. Additionally, the use of Strontium Ferrite magnets not only contributes to the overall weight but also ensures a strong magnetic field, which is crucial for precise sound output.
Applications
The ATI 4590 Mid HF Driver is ideal for various professional audio applications, including live sound reinforcement, theater productions, and music festivals. Its ability to deliver clear, detailed sound makes it a favorite among audio engineers and sound technicians. Whether used in line array systems or standalone setups, this driver provides exceptional performance and reliability.
Conclusion
In summary, the ATI 4590 Mid HF Driver stands out as a top-tier choice for anyone looking to enhance their audio experience. With its superior specifications, high-quality materials, and versatile applications, this driver is designed for professionals who demand excellence in sound reproduction. Upgrade your audio system today and experience the difference with the ATI 4590.
